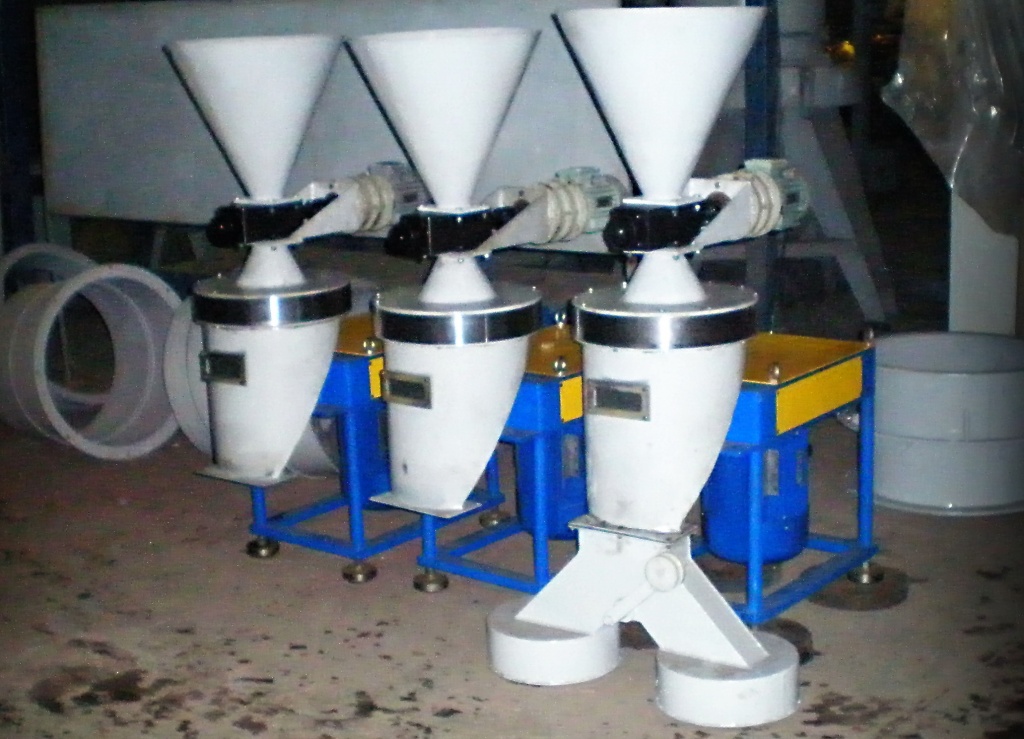

Mills for food products are designed to grind sugar, spices, cacao and coffee beans, herbs, dried fruits, farm grain products for mixed fodder, whole flour as well as to produce powders from different medium-hard minerals with the feed-size of 10-15 mm.

These milling plants have dosers which protect the engine against the overload and improve the quality of the ground product. The discharging can be done into bags, containers, bins.

Actually, the rotor system has no vibrations hence allowing the operation of the mills at any elevation of production facilities thus simplifying the arrangement of technological lines.

DC mills are intended for milling and grinding of different food products, grain products and for the production of powders from different medium-hard minerals.


 Salt and sugar powdering by crushing

Milling of spices

Dried bread and bread powdering

Grain and cereals powdering

Making of sawdust from wood-flakes by grinding

Turning of coal and stone into chips by crushing

Parameters

Value

Model

DC-0,32

DC-0,45

DC-0,6

D-0,8

Productivity, kg/h

200…500

up to 2000

up to 6000

8000

Grinding coarseness, mm

0,05-0,315

0,1-2,0

0,1-2,0

0,1-2,0

Nominal voltage, V

380

380

380

380

Rotor

diameter, m

0,34

0,46

0,6

0,8

rotation frequency, min-1

6000

5300

3000

3000

Installed capacity, kW

7,75

15-18,5

56,5

75

Overall dimensions, m

length

0,91

1,3

0,9

1,1

wight

0,56

0,55

0,9

1,1

height

1,3

0,9

1,7

1,7

Weight, t

0,20

0,50

1,00

1,25

* Improving the assimilation of food.

* Save the nutritional and vitamin properties of the products.

* Sterilization by heating in a short grinding process

* Increased solubility and adsorption properties of the products.
